Performance and characteristics
This is a high precision flat bed die cutter. Material feeding & cutting are controlled by servo motor. Lateral sides are controlled by 2pcs of sensor and lineal side is controlled by one of sensor. Laminating, diecutting, waster removal, sheeting or rewinding can be completed in one pass. It is suitable for cutting pressure sensitive label and holographic anti-counterfeiting label. It is a best, efficient partner for adhesive label printing machine and hologram diecutter and is also applicable for label house. electronic parts die cutting and adhesive tape sectors.

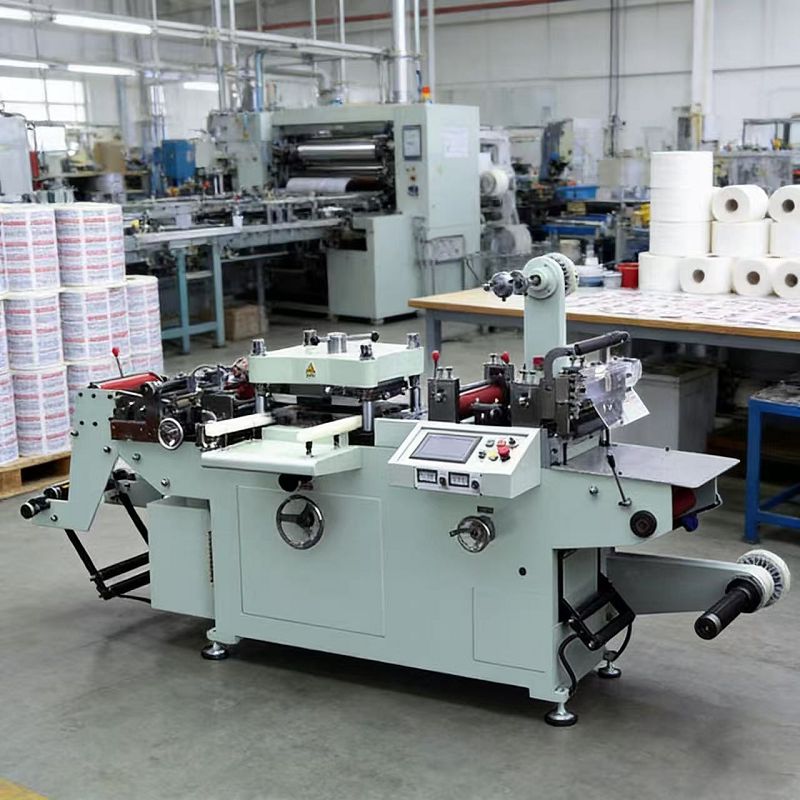

MQ450 Die cutter:
Optional function: Hot-stamping
Lamination
Computer punch
Max paper width: 450mm
Die cutter width: 450mm
Die cutter length: 450mm
Die cutter speed: 20-300times/min
Max web diameter: 600mm
Positioning accuracy 0.1MM
Power : 380V/3P /50HZ
Machine weight: 1500kgs
Overall dimensions: 2800*1100*1600MM
The machine is automatic paper feeder, web guide by sensor, color mark sensor, die cutter, waster wrapping, cutter,auomatic rewinder
|
Item |
Brand |
Country of manufacture |
|
Servo motor |
SHILIN |
TAIWAN |
|
Engine controller |
SHILIN |
TAIWAN |
|
Rewinding engine |
DC motor |
China |
|
Controls (set) |
INOVANCE |
CHINA |
|
PLC |
INOVANCE |
CHINA |
|
Touchscreen |
Kunlun |
Beijing |
|
Speed transductor |
Shilin |
Taiwan |
|
Power switch |
Chengtai |
China |
|
Web guide photoelectric switch |
FuTai |
Taiwan |
|
Counting photoelectric switch |
BAIDELI |
CHINA |
|
Main engine |
Y90s-4 |
China |
|
Feeding engine |
DC motor |
China |
|
Other electric components |
Chengtai |
China |
|
Contactor |
Schneider |
Japan |
|
Panel buttons |
Chengtai |
China |
|
- |
- |
Other information:
- Packing: Sea worthy and fumigating wooden case
- Quality Guarantee: within one-year guarantee from installment date. If the machine need repair within this period, the seller shall dispatch technician to buyer's side in time. But the buyer shall bear all the expense during the repair period.
- Term of trade: Fob, shall be subject to the International Rules for the Interpretation of Trade Terms (INCOTERMS 2000) Provided by International Chamber of Commerce (ICC)
- Payment: 30% T/T payment for deposit, the rest 70% T/T payment before shipment.
- Delivery time: 15days after receiving the 30% T/T payment.
- Insurance: to by covered by buyer
FAQ
Q: What is the MQ-450 flatbed die cutting machine used for?
A: The MQ-450 is used for roll-to-roll or sheet-based die cutting of label materials, including self-adhesive labels, film labels, and packaging materials. It can perform die cutting, laminating, waste stripping, slitting, and rewinding in one line.
Q: What is the maximum web width of MQ-450?
A: Max web width: 450 mm
Q: What is the cutting size of MQ-450?
A: Typical specification:
Max die cutting area: 450 × 450 mm (or similar depending on configuration)
Q: What is the die cutting speed?
A: Depending on machine type:
Standard: 20–220 cycles/min
High-speed servo version: up to 300 cycles/min
Q: What is the cutting accuracy?
A: Standard accuracy: ±0.1 mm
High-end servo models: stable long-run registration performance
Q: What materials can MQ-450 process?
A: It can handle:
Self-adhesive paper labels
PP / PET / PVC film labels
Laminated labels
Thermal paper
Anti-counterfeit labels
Some thin packaging materials
Q: What is the maximum unwinding diameter?
A: Typically 500–600 mm
Q: What is the maximum rewinding diameter?
A: Usually 500–600 mm
Q: What functions does MQ-450 include?
A: Standard functions:
Flatbed die cutting
Laminating (optional)
Waste stripping (matrix removal)
Slitting
Rewinding
Meter counting system
Q: What type of die does MQ-450 use?
A: Steel rule flatbed die (wood base die)
Custom-made according to label design
Q: What is the difference between MQ-450 and MQ-350?
A: MQ-450: Larger width (450 mm), higher capacity, more industrial use
MQ-350: Smaller footprint, lower cost, suitable for medium production
Q: Why choose flatbed die cutting instead of rotary?
A: Flatbed advantages:
Higher cutting pressure
Better for complex shapes
Lower tooling cost
Flexible for short and medium runs
Q: What control system does MQ-450 use?
A: PLC control system
Touch screen HMI
Servo motor feeding system
Automatic registration control
Q: What causes poor die cutting quality?
A: Common reasons:
Dull or damaged die
Incorrect pressure setting
Material stretching or instability
Poor registration alignment
Waste stripping failure
Q: Why does registration drift happen?
A: Possible causes:
Servo encoder error
Material expansion/shrinkage
Sensor misalignment
Inconsistent tension control
Q: Can MQ-450 run transparent film?
A: Yes, but requires:
High sensitivity photoelectric sensors
Clear registration marks
Stable tension control system
Q: What is waste stripping (matrix removal)?
A: It is the process of removing excess material after die cutting so that only finished labels are rewound.
Q: What is kiss cutting vs full cutting?
A: Kiss cut: Cuts only label layer, liner remains
Full cut: Cuts through both label and liner
