Key Features
- Disc shaft core any combination
- Label counting/metering
- Adhustable tension size
- Forward/Reverse Winding
- Speed adjustable
- 24 hours uninterrupted work
|
Model |
F300 |
F450 |
|
Speed (M/min) |
125 |
12 |
|
Diameter(mm) |
220/300 |
220/300/450 |
|
Core range(inch) |
1~4 |
1~4 |
|
Width of labels(mm) |
150 |
5~150 |
|
Rewind mode (Auto sync) |
Forward&Reverse |
Tension/F&R |
|
Rated power(w) |
130 |
150 |
|
Power specifications(Adapter) |
Input 100-240V |
Input 100-240V |
|
Packaging(mm) |
665*350*360 |
940*460*360 |
|
Net Weight(kg) |
22kg |
25kg |
|
Usage Environment |
-20~60℃ |
-20~60℃ |

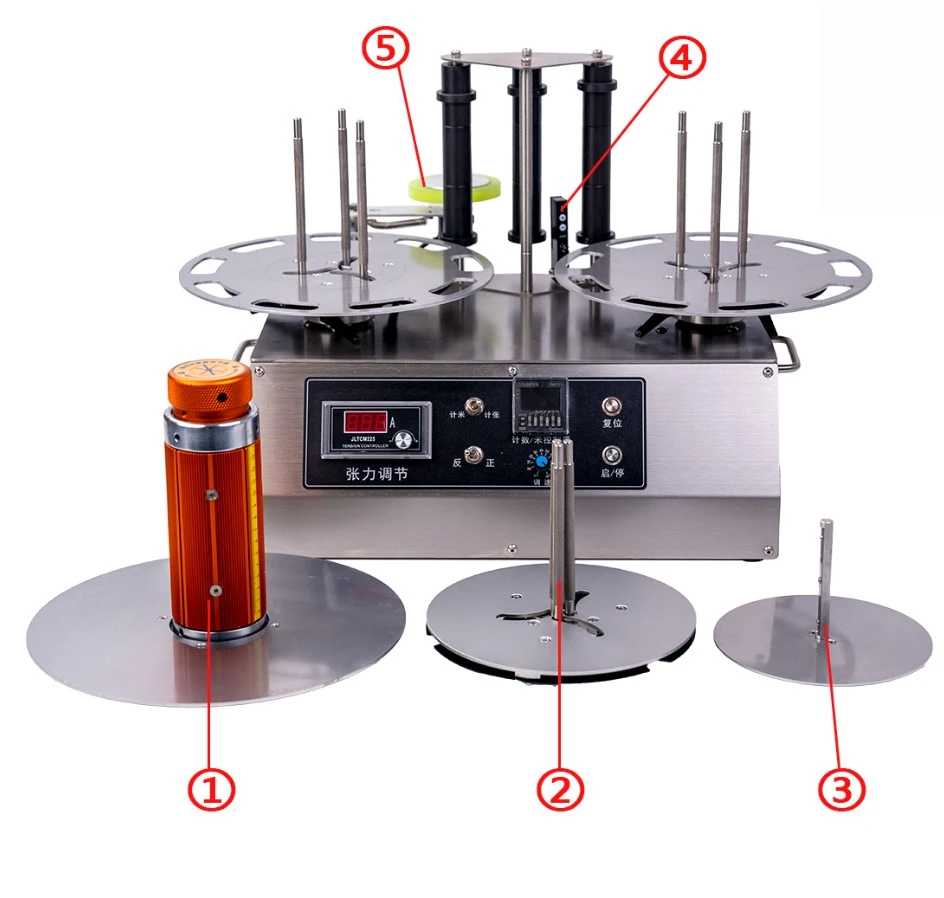

Optional Configuration:
① 3 inch expansion shaft
②1-4 inch adjustable spindle
③Customized small shafts as needed
④⑤ Counting and measuring in meters
Custom development
We can participate in the whole process of customerdemand customization discussion service, solve thedoubtful problems of winding and stripping, and jointly complete the customized demand design.
Application Scenarios:
Used for the rewinding, inversion, and conversion of large rolls of paper, fabric, and films into smaller rolls, it can automatically count the number of pieces or length in meters, ensuring neat rewinding and accurate counting.
FAQ
Q: How does the label counting function work?
A: A photoelectric sensor detects each label gap or black mark as the labels pass through the machine, providing highly accurate counting during rewinding.
Q: What label sizes can the machine handle?
A: Depending on the model, the machine supports various label widths, roll diameters, and core sizes. Customized configurations are also available.
Q: Is the machine suitable for continuous industrial use?
A: Yes. The machine is designed for continuous operation in label production and converting environments.
Q: Can I use my own logo or design on the products?
A: Yes, we offer OEM/ODM services, your logo and design can be creates on the products.
Q: What materials does this machine support?
A: Compatible with most roll labels: coated paper, thermal labels, PET, PP synthetic paper, fragile labels, RFID labels, garment tags and adhesive sticker rolls.
