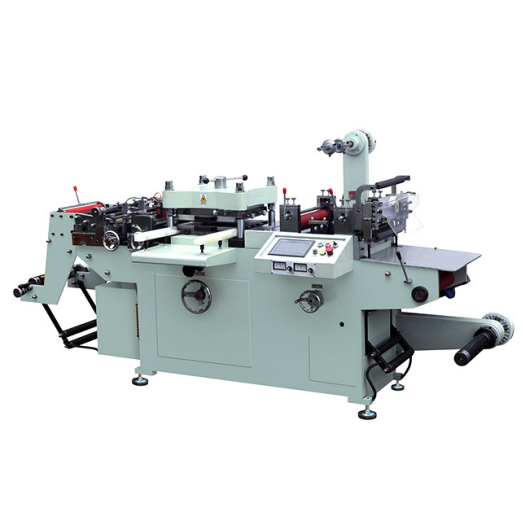

LABEL DIE CUTTING MACHINE

This machine is suitable for both blank adhesive labels and printed label for both rolls (25mm, 40mm,76mm core) and sheets. Die-cutting&slitting can be finished in one process.(option slitting station), It can produce both rolls and sheet. It has the function of automatic meter counting, automatic stop, web guiding by photocell. The machine has the characteristic of compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady running etc.

产品详情

SPECIFICATION1: MQ-350 DIE CUTTING MACHINE

Technical parameter:

1. Die cutting speed: 20-300times/min

2. Max. Unwind diameter: 600mm

3. Max. Rewind diameter: 600mm

4. Max. Web width: 350mm

5. Max. Die cutting width: 350mm

6. Max. Die cutting length: 350mm

7. Position accuracy: 0.1mm

8. Power: 8kw

9. Voltage: 380V/50 HZ . 3Phase

10. Overall dimension(L*W*H): around 2960*1140*1800mm

11. Machine weight: around 2200kg

12. PLC with touch screen: 1 set

13. The machine is automatic paper feeder, web guide by sensor, color mark sensor, die cutter, waster wrapping, cutter device, automatic rewinder.

14. Option: laminator, hot stamping function

Part Brand List:

型号	Item	Brand	Country
伺服电机	Servo motor	YASKAWA	JAPAN
伺服驱动	Engine Driver	YASKAWA	JAPAN
拉料电机	Paper feeding motor	YASKAWA	JAPAN
收卷电机	Rewinding engine	DC motor	CHINA
PLC	PLC	Mitsubishi	JAPAN
触摸屏	Touchscreen	Kunlun	CHINA
变频器	Speed transductor	Shilin	Taiwan, China
开关	Power switch	Chengtai	China
纠偏电眼	Web guide photoelectric switch	FuTai	Taiwan, China
追色电眼	Counting photoelectric switch	PANASONIC	JAPAN
主电机	Main engine	Y90s-4	China
放料电机	Feeding engine	DC motor	China
其他电器元件	Other electric components	Chengtai	China
接触器	Contactor	Schneider	Japan
按键	Panel buttons	Chengtai	China
		-	-
